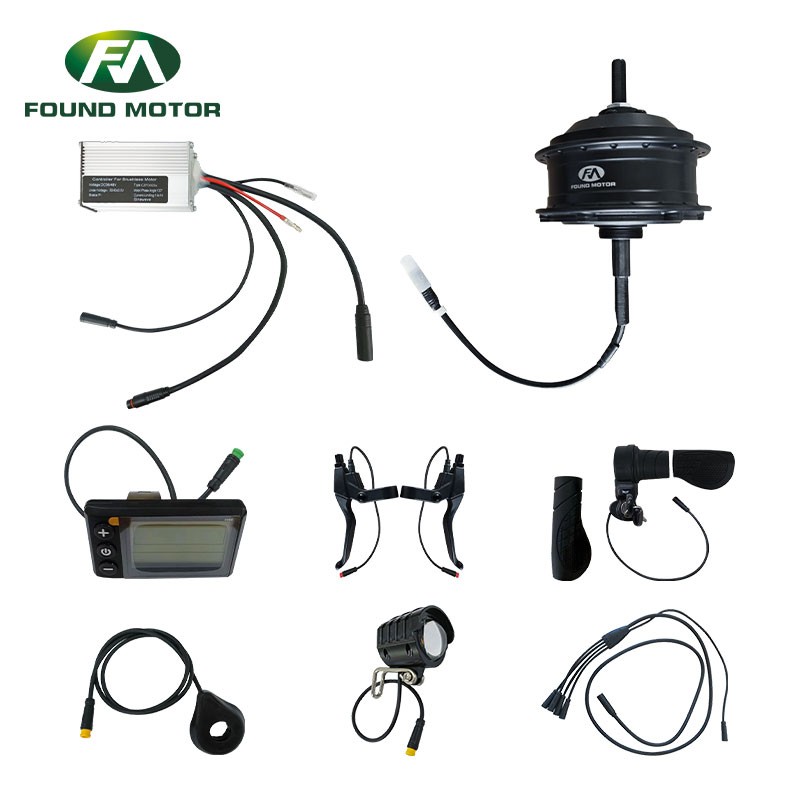

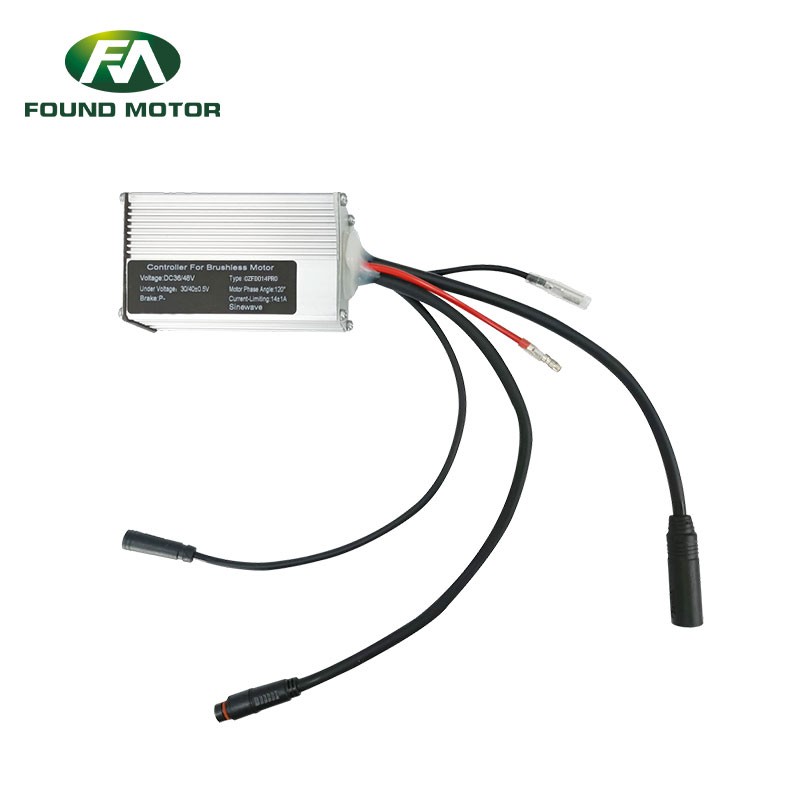

1.DC 36V/48V, Sinewave controller. 2.Current-limiting 15±1A. 3.Waterproof connector:Motor,Power lock

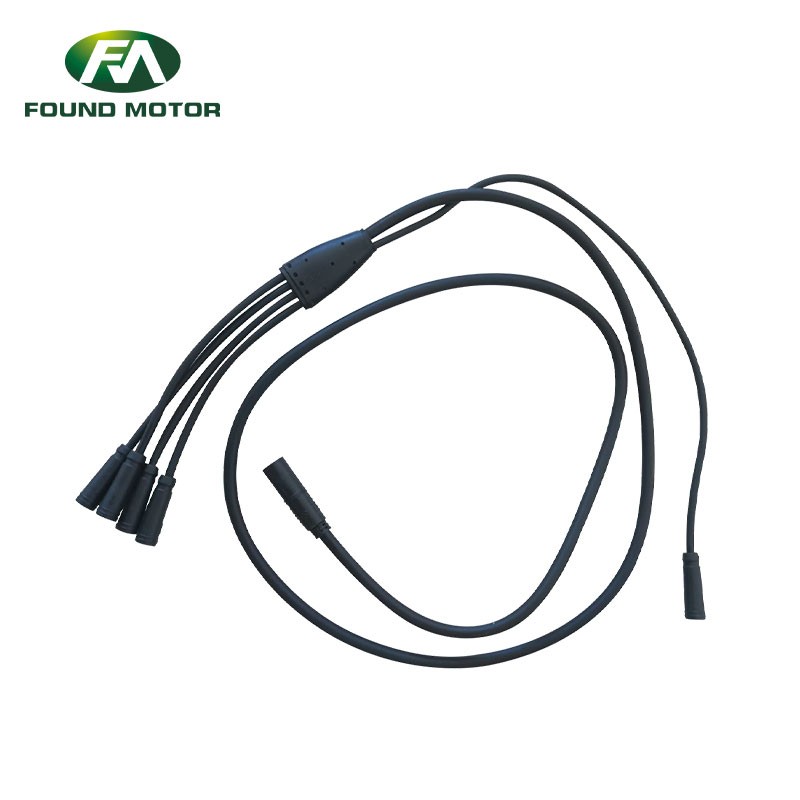

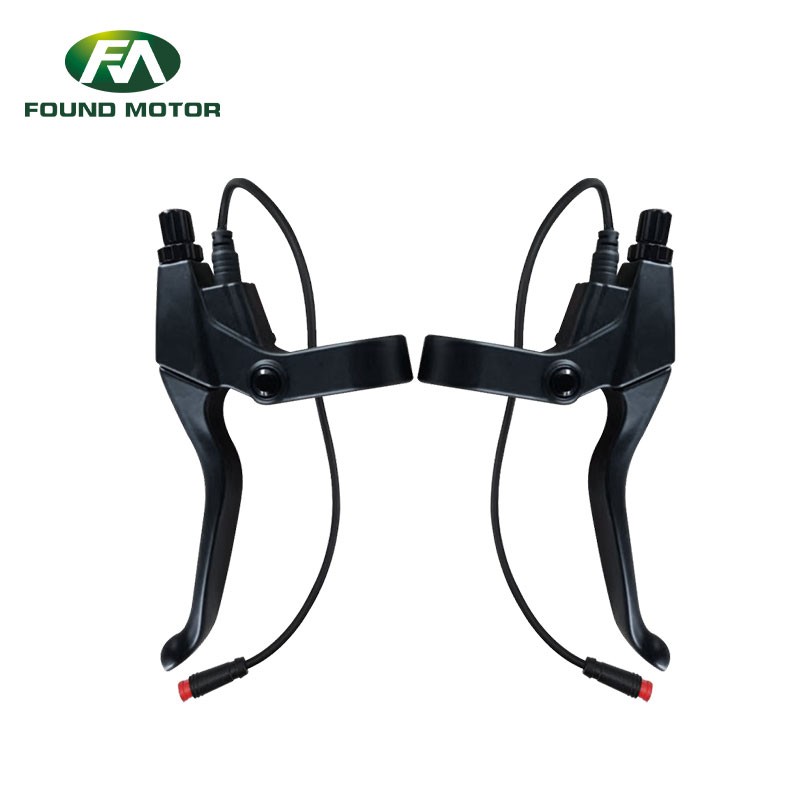

switch,PAS,Main cable for throttle,brake

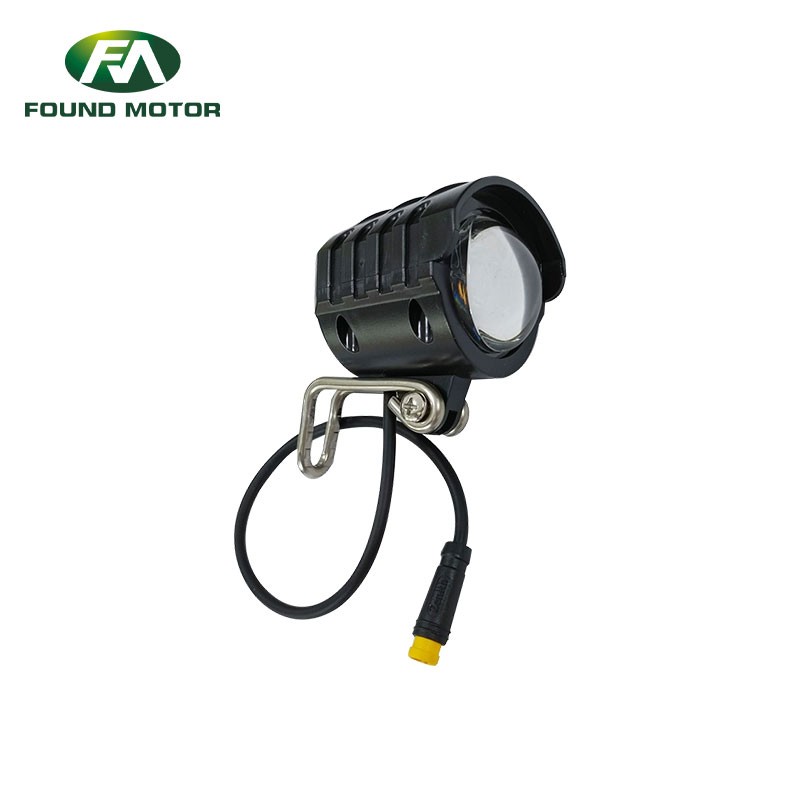

lever,LCD display,switch,front light.rear
light,Auto cruise,Adjustable speed limit.

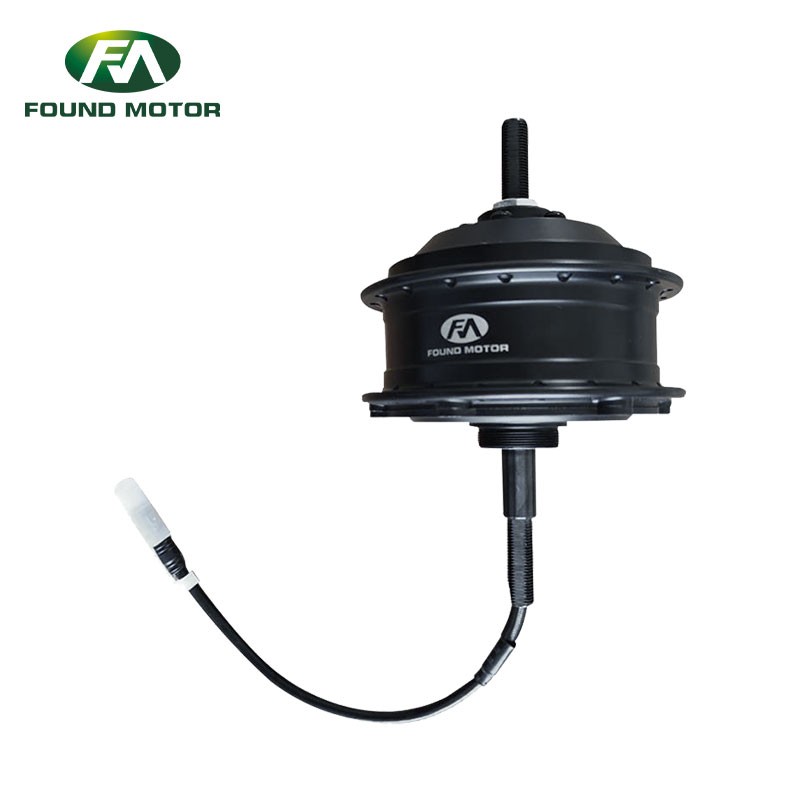

Model | CZFD014PRO-R |
Rated Voltage(V) | 24/36/48 |
Rated Power(W) | 180-350 |
Wheel Size | 14”-28” |
Spoke Specification | 12G/13G |
Spoke Holes | 36 |
Rated Speed(km/h) | 25 |
Efficiency(％) | ≥80 |
Reduction Ratio | 1:4.4 |
Weight (Kg) | 2.5 |
Open Size(mm) | 100 |
Drive And Freewheel | Front drive/No freewheel |
Cable Location | Optional |
Hall Sensor | Optional |
Inner Speed sensor | Optional |
Surface | Black/Silver |
Brake Type | V brake/Disc brake |
Salt Fog Test(h) | 24/96 |
Noise (db) | <55db |
Waterproof Grade | IP54/IP65 |
Comments：
1. Customized LOGO available.
2. Brushless geared motor,Brushless gearless motor optional.
2.1Brushless geared motor
Normal electric bike motor 24V/36V/48V,180W-1000W
Fat bike motor 36V/48V/52V/60V,250W-1200W
2.2Brushless gearless motor
Normal electric bike motor
36V/48V/52V/60V/72V,250W-1500W
Fat bike motor 36V/48V/52V/60V/72V 500W-8000W
3.Normal electric bike motor & electric bicycle motor available
Front drive motor(dropout 100mm)
Rear drive single speed motor(dropout 125mm)
Rear drive 6-9 speed motor(dropout 135mm)
Rear drive 6-11 speed cassette motor(dropout 142mm)
